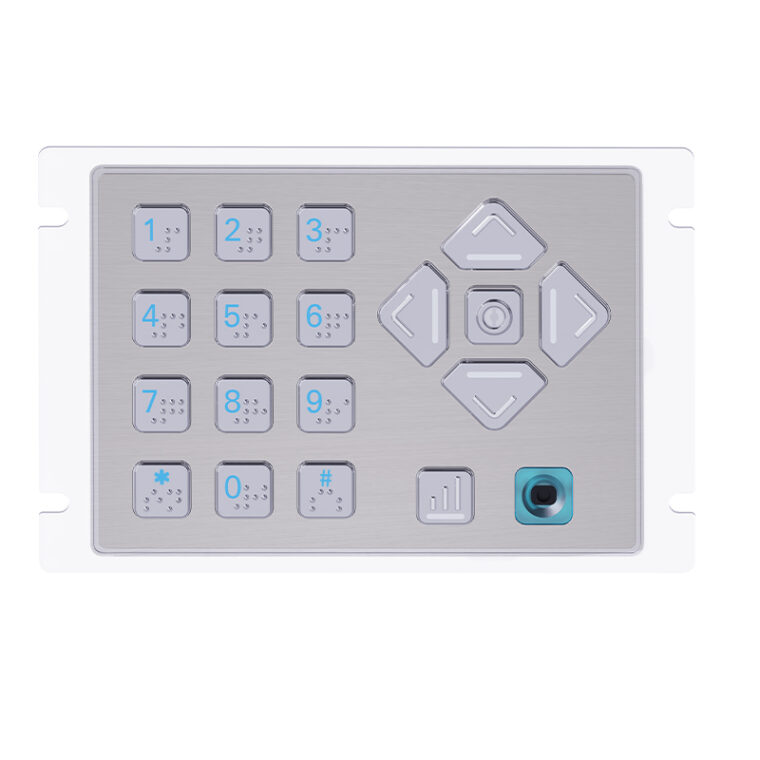

ABK18(*#)
- Audio navigation keypad ABK18(*#) is an assistive USB device offering menu navigation by means of audible direction.
- Users with impaired vision, reading difficulties or impaired fine motor skills can navigate through menus or directories that would typically be presented on a visual display or touch screen.
- Screen content is presented and summarised by recorded or synthesized language via a headset.
- Menu pages and available options can be navigated and selected using this responsive and highly tactile keypad device.
SPECIFICATIONS
OVERVIEW
| MODEL | ABK18(*#) |
| Certification | CE, FCC, ROHS |
| Materials | Brushed stainless steel |
| Instruction | Stainless steel panel; Conductive silicone contacts; |
| Dimension | 160*104*29.7 mm Approx. 380g (excluding cable) |
| Technical Parameter | Fully programmable Real Spill proof Total Travel: 1.5MM Drawing Force: 100 ~ 150 gf Key Lifespan: ≥100 0000 times presses Craft: Intaglio and relief engraving technique, Tactile Braille dots(every key) Backlit: White(Factory default)(Programmable) Audio Jack: 3.5mm Support Headset & Microphone(CTIA &OMTP) Support remote firmware upgrade Communication: HID KEYBOARD(Factory default With 1.8m USB-A Cable) OS: Windows, Android, Linux |
| Software | Utility: Windows,Android SDK: Windows Documents Support: SPECIFICATION, USER MANUAL, API Instruction, DLL Instruction, 2D&3D file |
| ESD LEVEL | Meets GB/T 17626 series ESD protection standards EMC design conforms to Class B interference immunity requirement |
| EMC Interference Suppression | Class B |
| Electrical Parameter | Operating Voltage: DC +5V ±10% Operating Current: 100 ~ 300mA (depending on backlight) Insulation Resistance: ＞50 MΩ Contact Resistance: ＜1 KΩ |
| Environmental Parameter | Operating Temperature: 0℃ ~ +50℃ Storage Temperature: -20℃ ~ +55℃ Operating Humidity: 10% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) Atmospheric Pressure: 86 ~ 106 kPa |
| Packing | Inner Packing: Independent suction-molded tray Inner box: 248*142*43 mm Master Carton: 445 *265*250 mm (15PCS/CTN） N.W/G.W: 5.8/8.2KG |
| OEM&ODM | Support: LOGO, new layout, new design, new firmware etc.. |
