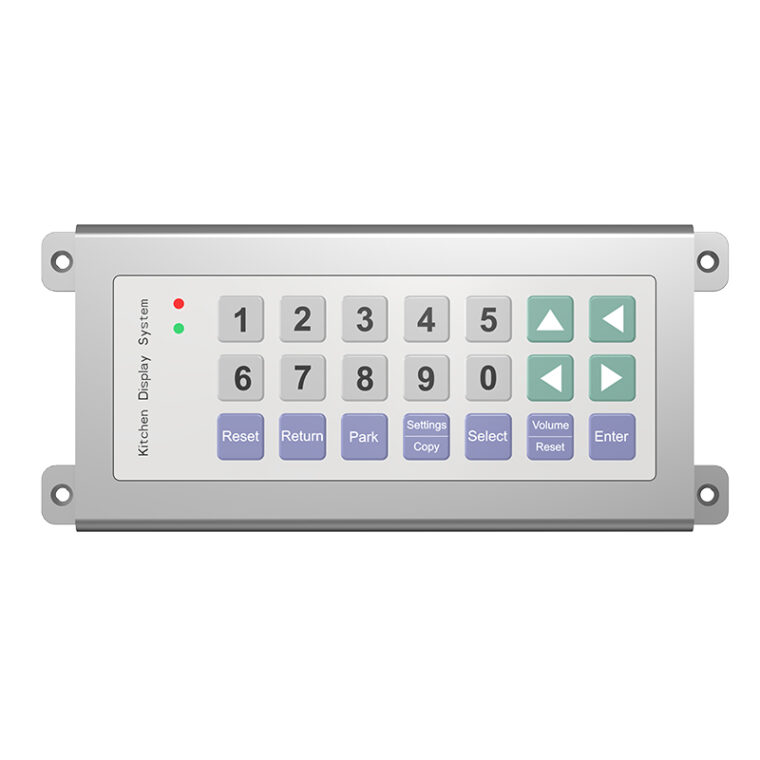

KDS21
- KDS Bump Bar, USB device
- 21 Programmable Keys
- Design to Withstand Harsh Environment
- 100% true spill-proof
SPECIFICATIONS
OVERVIEW
| MODEL | KDS21 |
| Certification | CE, FCC, ROHS |
| Materials | Stainless Metal Housing |
| Instruction | Metal Housing;
Conductive Metal Dome Switch |
| Dimension | 236*108 * 26 mm
Approx. 750g (With factory default cable 100mm USB C-A cable) |
| Technical Parameter | Fully programmable
Support macro function Support combined keys Built-in NVM(Saving settings) Real Spill proof (Front panel: IP65) Total Travel: 0.6MM Drawing Force: 280gf Key Lifespan: ≥100 0000 times presses Support remote firmware upgrade Communication: HID KEYBOARD(Factory default With 1.0m USB-A Cable) OS: Windows, Android, Linux |
| Software | Utility(Visual Key Mapping): Windows, Android
Driver: No need SDK: No need Documents Support: SPECIFICATION, USER MANUAL, 2D&3D File |
| ESD LEVEL | Meets GB/T 17626 series ESD protection standards
EMC design conforms to Class B interference immunity requirement |
| EMC Interference Suppression | Class B |
| Electrical Parameter | Operating Voltage: DC +5V ±10%
Operating Current: ＜100 mA Insulation Resistance: ＞50 MΩ Contact Resistance: ＜1 KΩ |
| Environmental Parameter | Operating Temperature: 0℃ ~ +50℃
Storage Temperature: -20℃ ~ +55℃ Operating Humidity: 10% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) Atmospheric Pressure: 86 ~ 106 kPa |
| Packing | Inner Packing: PP bag+Pearl protective cotton+paper box
Inner box: 295*158*67 mm Master Carton: 332*308*365 mm (10PCS/CTN） N.W/G.W: 7.5/9.3KG |
| OEM&ODM | Support: LOGO, new layout, new design etc.. |
| Application | Kitchen Display System Terminal Back-of-House Order Input and Status Feedback Chain Restaurant Back-of-House Management System |
