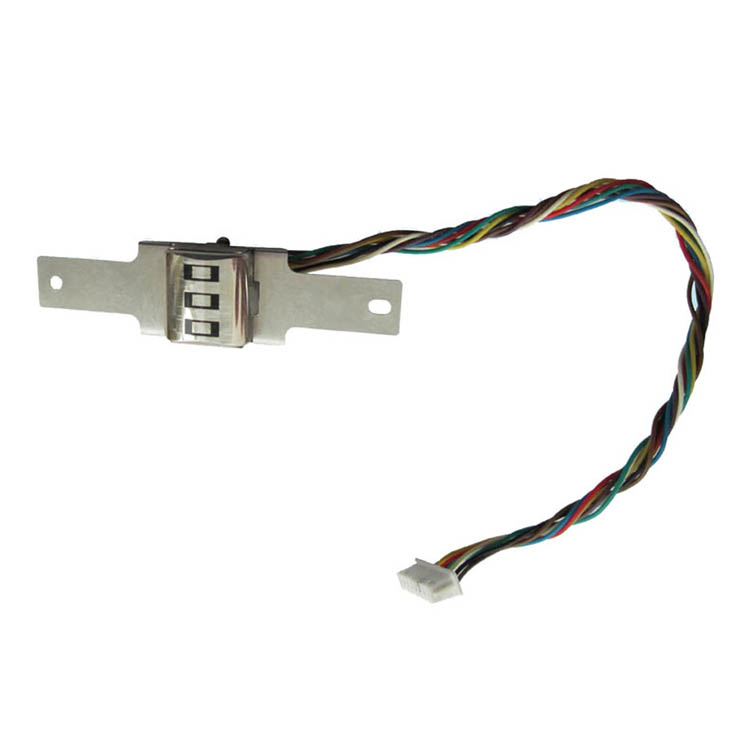

MH0033
Features
- Encrypted decoding maghead
- Bi-directional card reading
- Reads up to three tracks of card data that meets ANs1/1s0/AAMVA/J1s standards
- All electronics are potted inside the head to prevent tampering
- Includes Device serial Number
- All card data from the triple-track Delta As1C is encrypted using TDEA prior to Transmission (the data is not decodedor formatted prior to encryption)
- Uses a unique double-length DES key per Device
- 5 wire SPI bus serial interface
- Maximum SPI bus transfer rate of 100 Kbits/s
- Magtek 21006541 chip for decoding Apply to : POS terminal, Gas Station, Kiosks, ATM
E-Brochure
Specification
| MH0033 Encrypted Decoding Mag Head | |
| Brand | LIF |
| Model | MH0033 |
| Type | Encrypted mag head , Magnetic care reader head, Encrypted decoding mag head |
| Card Stand | ISO7810andISO7811 |
| Record Method | F2F (Two-FrequencyCoherent Phase) |
| speed | 4 to 60 ips(10.1 to 152.4 cm/s) |
| Combustibility | UL94V-0 |
| Interface | 1.25-5P plug |
| Working Voltage | 2.7-3.6VDC |
