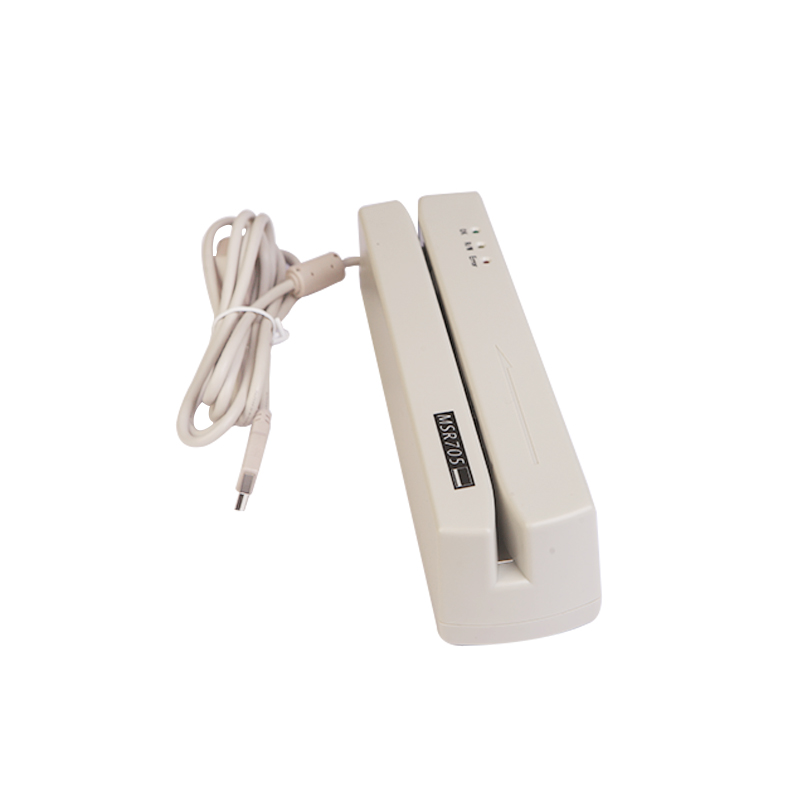

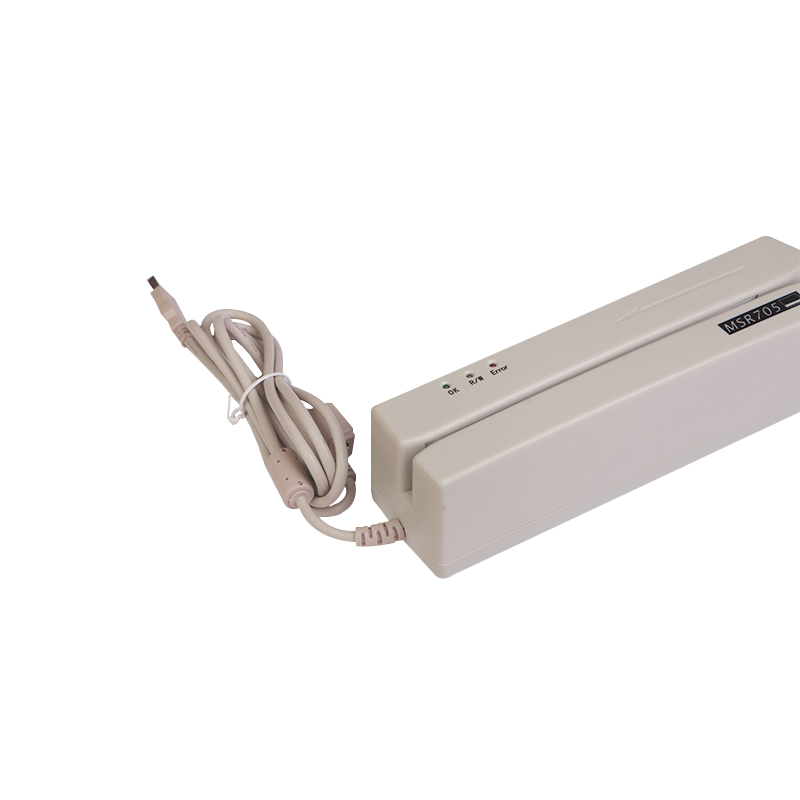

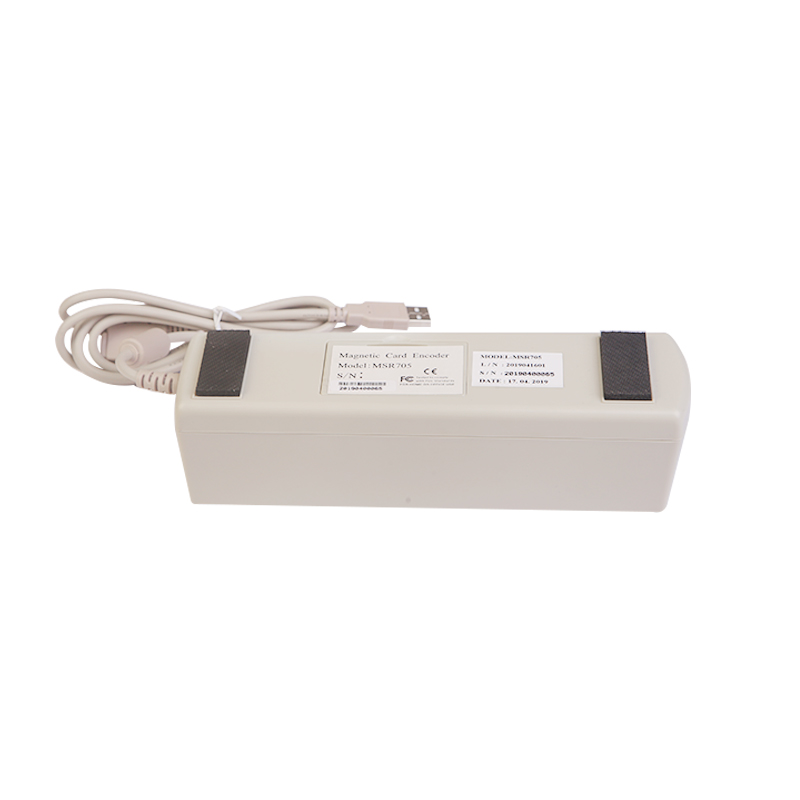

MSR705
The MSR705 series is designed to read and/or write high or low coercivity magnetic cards. It can encode and verify up to 3 tracks of data simultaneously. It communicates with a host computer or other terminal using a standard RS-232 interface.It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly reader/writer.
Features
- 1/2/3 Tracks high covercivity Magnetic stripe card reader writer
- Standard USB interface or RS232
- External power adapter
- Come with software
- Configured with program to set the record format and character set of magnetic card according with the requirement of customer
- High Anti-interference
- Electro-Static discharge
- The header, tailed, separator, prefix code, suffix code and track sequence can be programmed through MSR setting
- Operation response is combine of diode and buzzer, reading successfully when the buzzer ring
E-Brochure
Specification
| MSR705 Magnetic stripe card reader and writer | |
| Brand | LIF |
| Model | MSR705 |
| Swipe | Manual, single direction |
| Keywords | Magnetic Stripe card reader and writer |
| Read Circuit | Track 1&3 210bpi; Track 2,75 or 210 bpi |
| Bit per Char | 5-7 bit per char |
| Media Speed | 300-4000 Oe |
| Media Coercivity | Read bit to bit interval <+/-15% card
Write bit to bit interval <+/-10%,Sub interval<+/-12% at 30ips |
| Jitter Card | Read 60% for both 75& 210bpi |
| Low amplitude Card | Head life 1,000,000 passes for both read & write head |
| Media Swipe | Head life 1,000,000 passes for both read & write head |
| Error Rate | Read < 0.5%
Write < 0.8% |
| Media Thickness | 0.76-1.2mm |
| Standard | ISO7811 |
| Power supply | External switching Power 24V/2.5A regulated |
| Interconnection | RJ45->DB9, 5 feet |
| Dimension | (L x W x H) 227 x 62 x 60 mm |
| G.W | 2KG |
